Product Features

Rotatable Solar Panel

This solar panel features an adjustable angle mechanism, enabling optimal sunlight exposure and improved energy absorption throughout the day.


Advanced MPPT Technology

Employs Maximum Power Point Tracking to enhance energy usage by 15% to 20% over traditional PWM controllers.


Multi-Peak MPPT

Incorporates multi-peak MPPT technology to constantly monitor the maximum power point, boosting the solar panel's conversion efficiency.


Intelligent Power Control 5.0

Smartly senses weather conditions and regulates discharge power to ensure dependable performance even on rainy days.


High-Efficiency LED Chips

Fitted with 140 high-efficiency LED chips that deliver optimized brightness while ensuring excellent heat

Pictures Display

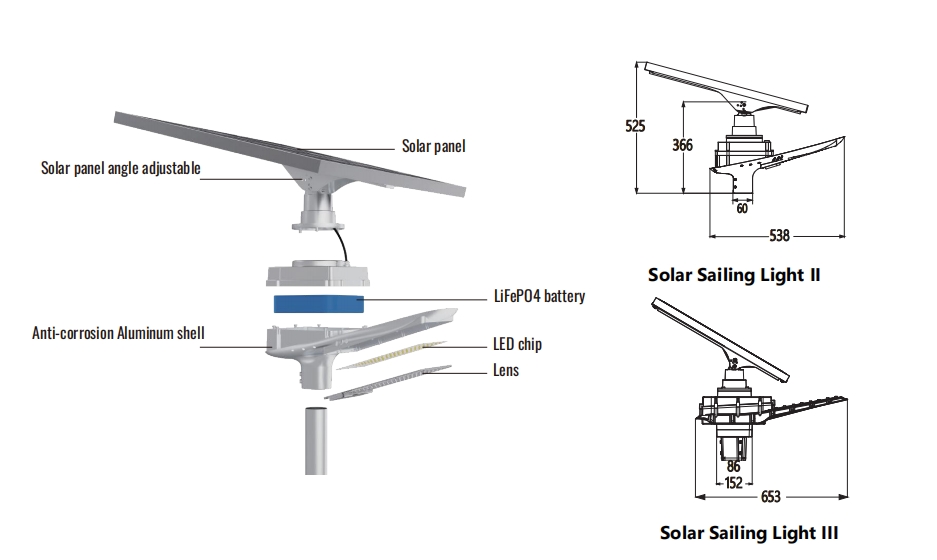

Unique Structure Design
ABUIABACGAAgqc3IvAYolM3CzQYwqQc4sAQ


Six Working Modes
ABUIABACGAAgsM7IvAYoyoLNwwIw4AE4sAM

DEMO Mode

The light activates for 1 minute, regardless of day or night. This mode is designated for testing only.


OFF Mode

The light remains turned off at all times, irrespective of day or night.


L Mode

During the night, the light operates at full brightness for 2 hours, then dims to 60% for the next 3 hours, and finally reduces to 20% until dawn.


T Mode

In the evening, the light runs at 100% brightness for 3 hours, followed by 50% for the next 3 hours, and ultimately 30% for the last 2 hours.


M Mode

At night, the light shines at full brightness for 3 hours, then switches to 50% for the following 3 hours.


U Mode (Highlight Mode)

In the evening, the light operates at full brightness for the first 3 hours, then at 50% for the next 3 hours, and incorporates an additional highlight feature.


Specification Data
ModelsRS-SL80PRS-SL100PRS-SL120PRS-SL120-ARS-SL200PRS-SL300P
LED Power30W40W50W60W80W100W
Solar Panel (W)60W80W80W100W120W150W
Battery (Wh)192WH256WH320WH384WH512WH640WH
Luminous Flux (LM)6000800010,000lm12,000Im16,000lm20,000lm
Beam Angle155°*55°
CCT3000-6500K
CRI>70Ra
Charging Time4-6 hours
Working Time2-4 rainy days
Working Temperature-20℃~60℃
Lifespan≥50000 hours
MaterialDie-casting Aluminum
IP RatingIP65
Case Diameter60mm70mm
Installation Height (M)6-7M7-8M7-8M8-9M8-10M
Mounting Distance15~20m15~20m20~25m20~25m25~30m
Reference Installation
