Product Features
ABUIABAEGAAg_NnLvAYojL-HywYwsAk49AY

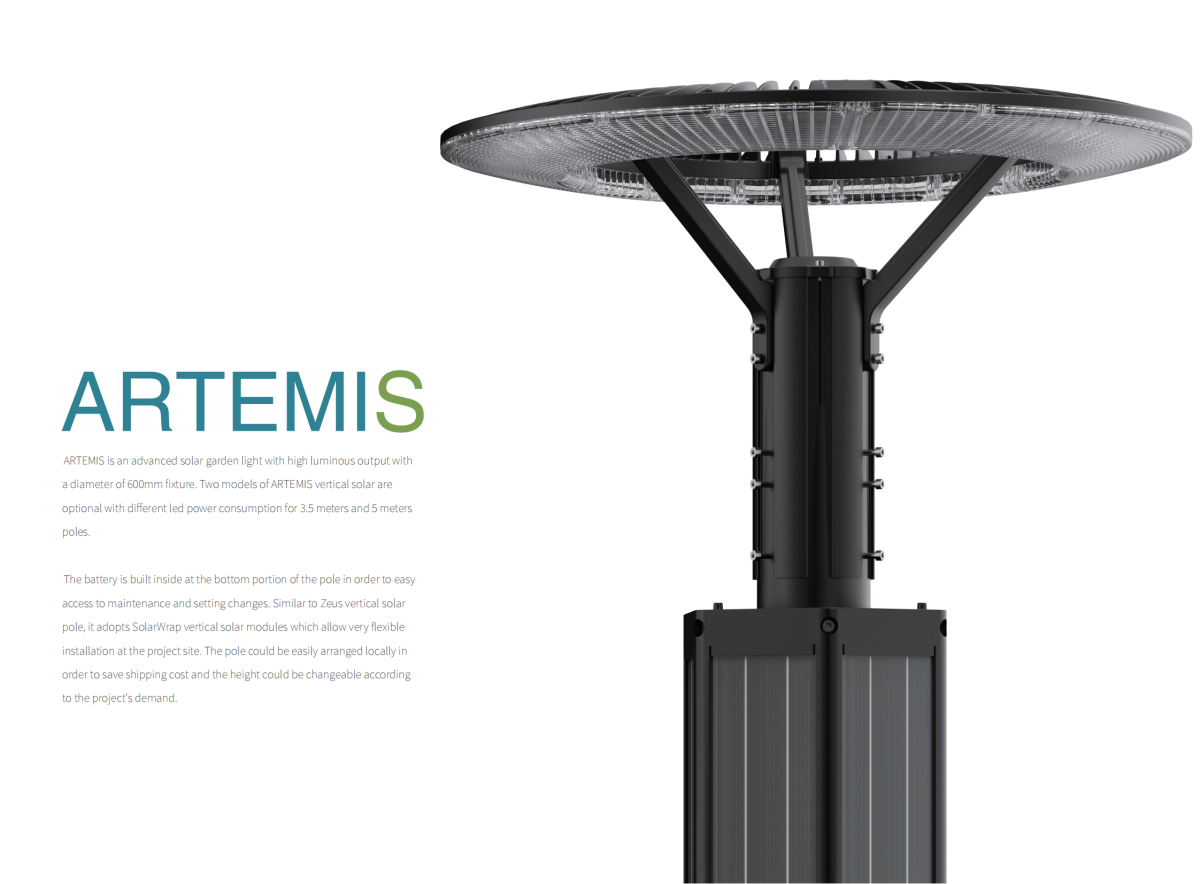

The vertical solar pole light is meticulously designed for high-end projects that require both aesthetic appeal and superior illumination. It is equipped with a garden light head, a LiFePO4 battery integrated with an MPPT controller, a sturdy steel pole, and a solawrap vertical solar module. Unlike conventional solar LED garden lights, vertical models present a more visually appealing and compact design. The robust LiFePO4 battery supports 4,000 cycles at a 50% depth of discharge and is designed to last over a decade without necessitating maintenance. A highly efficient MPPT solar charge controller operates at a remarkable 97% efficiency, ensuring an adequate power supply for the LED lighting. This vertical solar pole is exceptionally versatile for marketing and project applications; the steel pole can be tailored to meet specific requirements and is optimized for efficient shipping.

Specification Sheet
ABUIABACGAAggd3LvAYoiPHd6AQwqAE42AQ
LUMINAIRE
LED Type & Power30W60W
Luminous Flux>4400LM>8800LM
CCT Range3000K / 4000K / 6000K
Beam Angle120 degree
SOLARWRAP PV
Max Power200W400W
Output Voltage18V
Module Quantity1 unit2 units
BATTERY PACK
Rated Capacity307WH615WH
Battery Cell32700 6000mAh 16pcs32700 6000mAh 32pcs
Battery Life>4000 cycles @ D.O.D 50%
Working Temp.-25℃ ~ +65℃
MPPT CHARGE CONTROLLER
Max. Load< 60 Watts
Max SolarWrap PV240 Watt 18V
ProgrammableYes
IP RateIP68

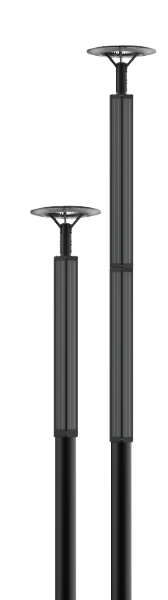

STEEL POLE
Height & Material3.5 meters steel5 meters steel
DimensionAs drawing shows
Key Features
ABUIABACGAAg9K-JvAYo8fzGcTC1BjiiAQ
Installation Reference
