Product Features
ABUIABAEGAAglK-JvAYopNDFxAMwsAk49AY

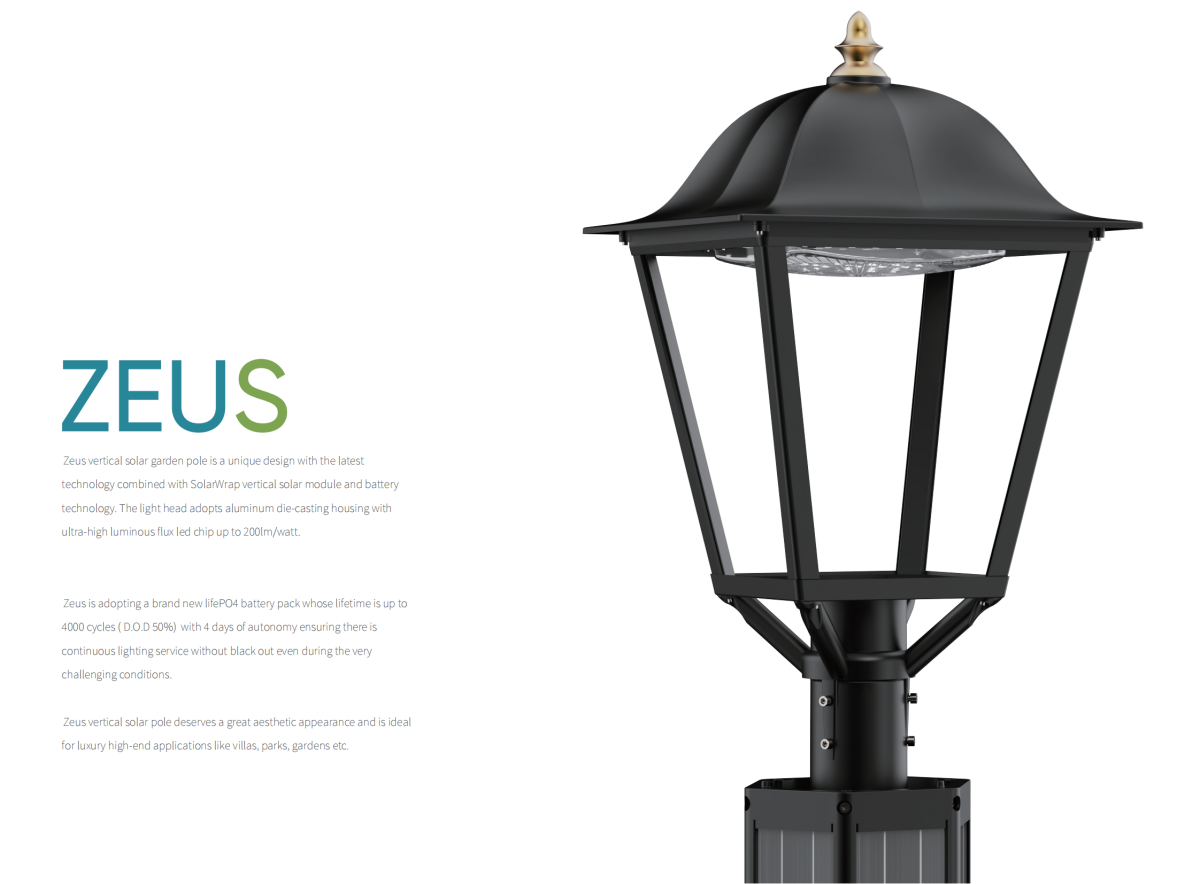

The ZEUS vertical solar pole light is meticulously engineered for premium projects that necessitate both aesthetic appeal and superior lighting performance. It comprises a garden light fixture, a LiFePO4 battery accompanied by an MPPT controller, a robust steel pole, and a Solawrap vertical solar module. In contrast to conventional solar LED garden lights, vertical models offer a more visually captivating and streamlined structure. The high-performance LiFePO4 battery is capable of supporting 4,000 charge cycles at a 50% depth of discharge and is designed to last in excess of 10 years without the requirement for maintenance. Furthermore, the high-efficiency MPPT solar charge controller functions at 97% efficiency, thereby guaranteeing ample power supply for the LED lighting system. The vertical solar pole exhibits considerable versatility for marketing and project applications, with the steel pole being customizable to accommodate specific requirements and optimized for shipping purposes.

Specification Sheet
ABUIABAEGAAgy7DJvAYoqOL_8gcwkgQ40A8
LUMINAIRE
LED Type & Power30W max. SMD3030 140nos
Luminous Flux>4,500lm
CCT Range3000K / 4000K / 6000K
Beam Angle120 degrees
SOLARWRAP PV
Max Power200W
Output Voltage18V
Module Quantity1 unit
BATTERY PACK
Rated Capacity307WH 12.8V/24AH
Battery Cell32700 6000mAh 16pcs
Battery Lifetime>4000 cycles @ D.O.D 50%
Working Temp.-25℃ ~ +65℃
MPPT CHARGE CONTROLLER
Max. Load< 60 Watts
Max SolarWrap PV240 Watt 18V
ProgrammableYes
IP RateIP68
STEEL POLE
Height & Material3 meters steel

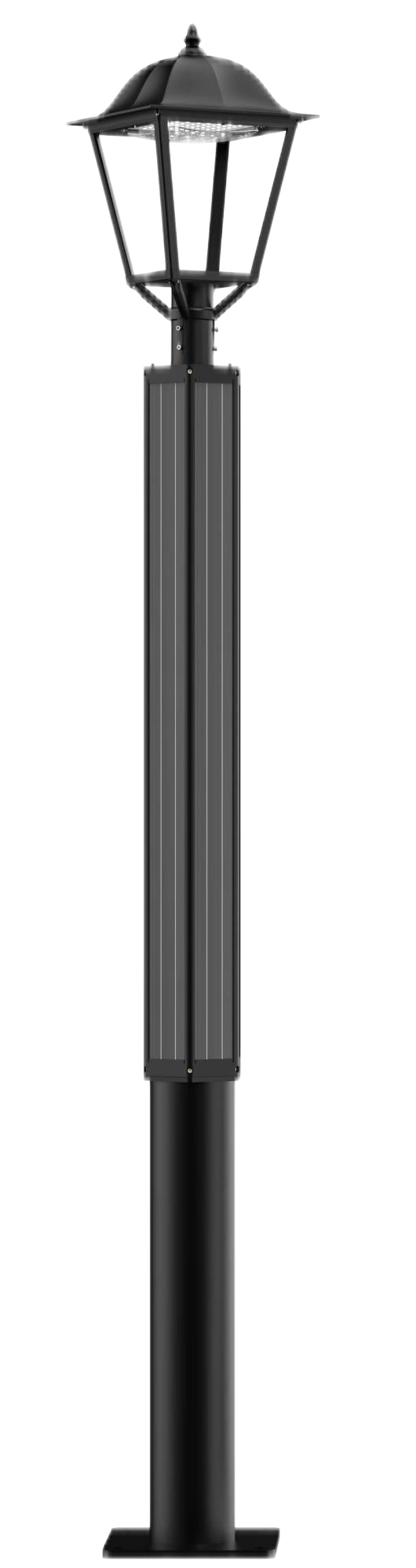

DimensionAs drawing shows


Key Features
ABUIABACGAAg9K-JvAYo8fzGcTC1BjiiAQ
Installation Reference
