Product Features

The SunMyth All-in-One Solar Street Light is a cutting-edge solution designed to revolutionize outdoor illumination with its innovative integration of solar panels, high-efficiency LED lights, and advanced battery systems into a single, compact unit. This design enhances aesthetic appeal while maximizing energy efficiency and ease of installation.

Pictures Display

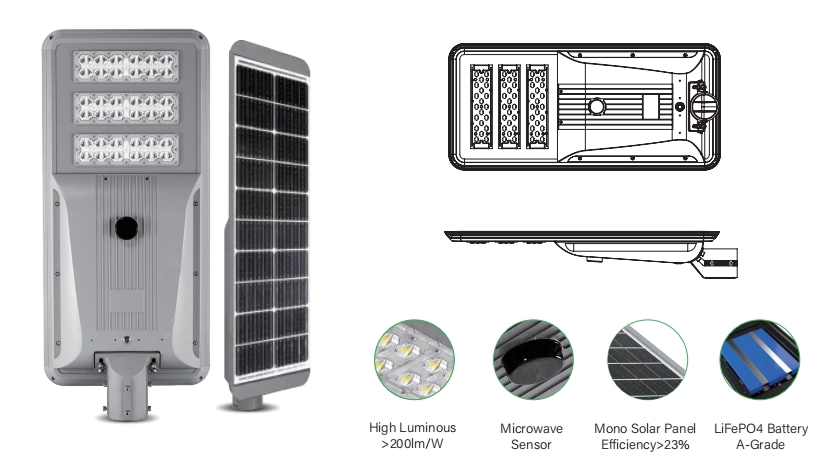

Main Featurs
ABUIABACGAAgyJzHvAYo9PyD3QQwwgY43AM

High-Efficiency Solar Panel:

A high-efficiency mono solar panel effectively converts sunlight into electrical energy, ensuring optizmal performance.


Long-Lasting Lithium Iron Phosphate (LiFePO4) Batteries:

Known for durability and numerous charge cycles, these batteries provide reliable energy storage for street lights. GH Street Lamp Features



MPPT Controller for Energy Management:

The Maximum Power Point Tracking (MPPT) controller keeps solar panels operating at peak efficiency, enhancing system performance.


Compact Integrated Design:

This all-in-one unit combines the solar panel, battery, LED light, and controller for easy installation, reducing the need for external wiring.


Low Maintenance and Cost-Effective:

The design's integration and use of quality components result in minimal maintenance and long-term savings on energy bills.

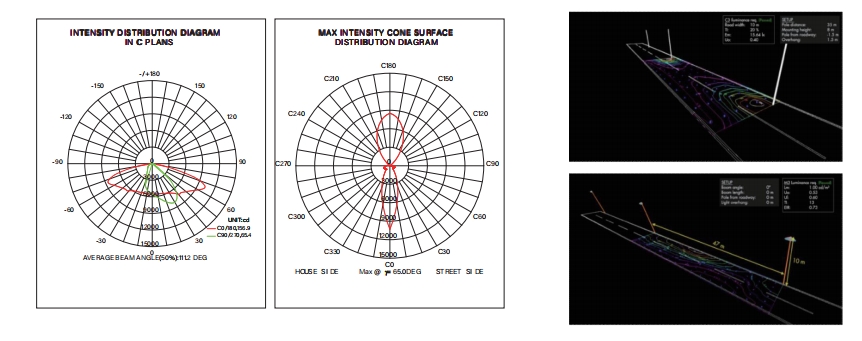

Optimized Optics

Solar-powered street lamps exhibiting a brightness level exceeding 200 lumens per watt (lm/W) are specifically engineered to deliver efficient and sustainable illumination. These lamps are fitted with optimized optical lenses that enhance light distribution while concurrently minimizing energy consumption. The elevated luminous efficacy of over 200 lm/W signifies that for each watt of power consumed, the lamp generates in excess of 200 lumens of light, rendering them an energy-efficient option for street lighting applications.



The role of the optimized optical lens is pivotal in directing the light output in a controlled manner, effectively reducing glare and light pollution, while ensuring the illumination is concentrated on the areas requiring light. This characteristic is especially significant for solar-powered street lamps, as it maximizes the utilization of solar energy harvested during daylight hours.


ABUIABACGAAgoqDHvAYo8vLYlQEw3gY41QI
Specification Data
ModelsGH-30WGH-40WGH-60WGH-80WGH-100WGH-120W
Rated Power30W40W60W80W100W120W
Solar Panel (W)18V/50W18V/60W18V/80W18V/105W18V/130W18V/180W
Battery (Wh)231WH320Wh491Wh576Wh768Wh960Wh
LEDs Quantity & Type96pcs SMD3030144pcs SMD3030192pcs SMD3030240pcs SMD3030288pcs SMD3030336pcs SMD3030
Light Efficiency (LM/W)200210210210210210
Discharge Time12h, 2-3 rainy days
IP GradeIP65
Installation Height (M)5~76~84587910~1212~1514-16
Iluminance Value (LUX)>30>30>30>25>25>25
Product Size (mm)773*408*135878*408*1301118*408*1351388*408*1301603*408*1352008*408*130
Packaging Size (mm)995*460*1301100*460*1301340*460*1301610*460*1301825*460*1302230*460*130
N.W (kg)10.511.513.51618.522
G.W (kg)1213.515.5182125
20ft Quantity450450350320280230
40HQ Quantity11601120950800700580


Reference Installation
