Product Features

Proven Technology

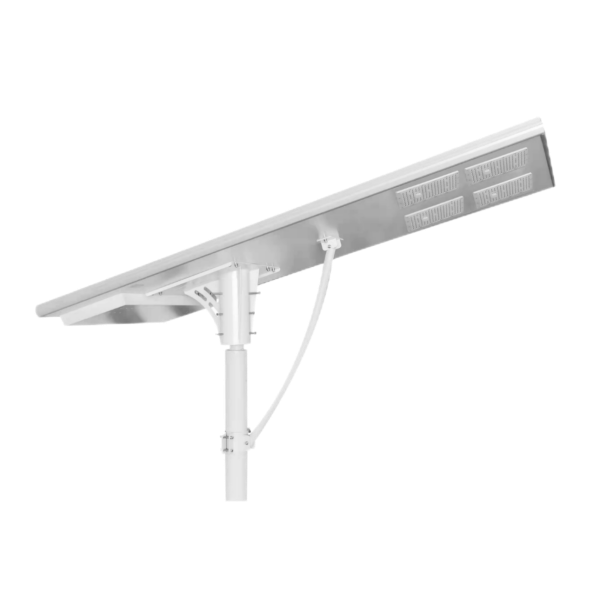

The LunaRay Solar Power Street Light boasts over a decade of production experience. With successful installations across more than 30 countries, its established technology guarantees reliability and high quality.


High-Efficiency Energy Solution

Featuring high-efficiency solar panels, LED lighting, and lithium iron phosphate batteries, LunaRay provides a customizable, scalable, and dependable energy solution. Its photocell sensors facilitate automatic on/off switching, optimizing energy usage for consistent illumination.


Smart Functionality

The integrated design incorporates a radar sensor for motion detection, enabling brightness adjustments to conserve energy. Additionally, the weather-resistant materials and remote control enhance user convenience.


Cost-Effective and Eco-Friendly

As an eco-friendly lighting option, LunaRay reduces dependence on traditional power sources. Its durable components yield substantial cost savings while promoting environmental sustainability.


Global Compliance

Certified with RoHS, CE, and ISO-9001, LunaRay adheres to international standards. The diverse global installations across various climates illustrate their adaptability and quality.


ABUIABAEGAAg6ajIvAYo8Me2rQEw2AQ42AQ
Pictures Display
IoT Smart Solar Lighting (Option)
ABUIABACGAAgzKrIvAYo4p7f3AUw0QQ4nQM

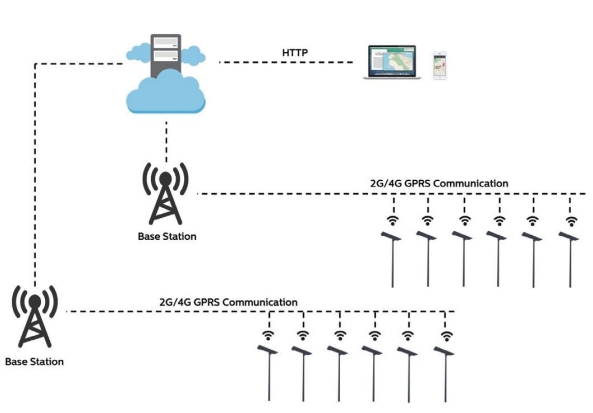

The IoT smart solar lights consist of four components: the IoT communication module, cloud server, APP, and data center.


• IoT communication module:

A 2G/4G/NB-IoT module that manages networking, retrieves data from the solar lamp controller, and disseminates cloud service commands.


• Cloud server:

Located on Ali Cloud, it oversees scheduling, storage, processing, and transactions within the IoT system.


• Data center:

A computer interface that manages street lamps, analyzes data, and processes faults.

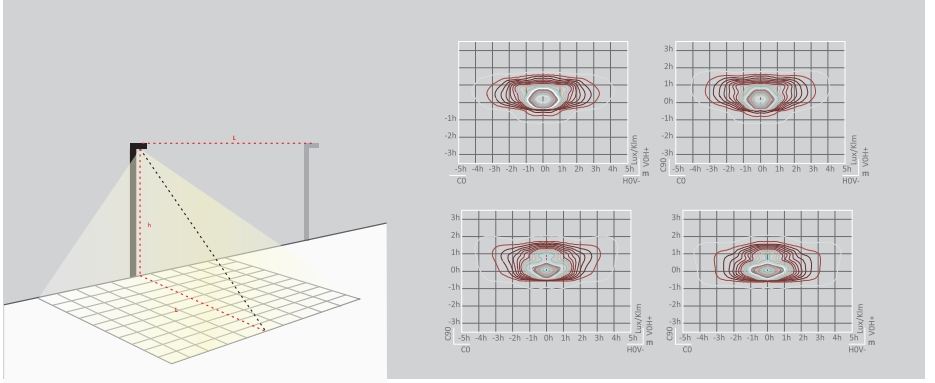

Light Distribution Display

Solar power street lamps with a brightness level greater than   200lm/W are designed to provide efficient and sustainable   illumination. These lamps are equipped with optimized optics   lenses that enhance light distribution and reduce energy   consumption. The high luminous efficacy of over 200lm/W   means that for every watt of power consumed, the lamp emits   more than 200 lumens of light, making them an energy-efficient   choice for street lighting.


ABUIABACGAAg6KjHvAYo0pSn3wYwpwc4-wI
Specification Data
ModelsAL-Y30WAL-Y40WAL-Y50WAL-Y60WAL-Y80WAL-Y100WAL-Y120WAL-Y150W
LED Power30W40W50W60W80W100W120W150W
Solar Panel (W)60W70W80W125W140W200W240W300W
Battery (Wh)230WH307WH384WH614WH768WH1075WH1280WH1536WH
Luminous Flux (LM)60008000100001200016000200002400030000
CCT3000-6500K
CRI>70Ra
Charging Time4-6 hours
Working Time2-4 rainy days
Working Temperature-20℃~60℃
Lifespan≥50000 hours
MaterialDie-casting Aluminum
IP RatingIP65
Case Diameter60-70mm
Dimension (mm)1040*360*1351120*360*1351080*430*2701310*530*2801350*610*3201500*680*3001640*790*3201840*850*320
Net Weight (KG)1517192225324350
Installation Height (M)5m6m6m7m10m10m12m15m
Mounting Distance25-35m25-35m25-40m30-40m30-40m30-50m30-50m30-50m


Reference Installation
