Product Features
  • Indicator Lights for Battery Capacity:

    The indicator lights for battery capacity represent the lamp's power status, facilitating straightforward observation of   both the charging and discharging processes.

  • Fourth Generation Intelligent Power Control

    This upgraded intelligent power control function regulates discharge power based on intelligent assessments of   current weather conditions, thereby supporting extended lighting duration and adaptation to increased frequency of rainy days.

  • Intelligent Charge and Discharge Management

    The charging and discharging processes are safeguarded by dual protections via software and hardware, complemented by intelligent equalization technology, allowing for over 2000 cycles of charging and discharging.

  • Proprietary Control System

    The Helia’s latest solar controller can freely adjust between various working modes, featuring a unique control system   that enhances functionality and stability. An optional microwave induction feature is also available to conserve power   and extend lighting duration.

  • Robust and Weatherproof Design

    The Luminara street light features an IP65 rating, indicating its resistance to dust and water. This robust design ensures   that the light can withstand harsh weather conditions, maintaining functionality and reliability in all environments.


Pictures Display

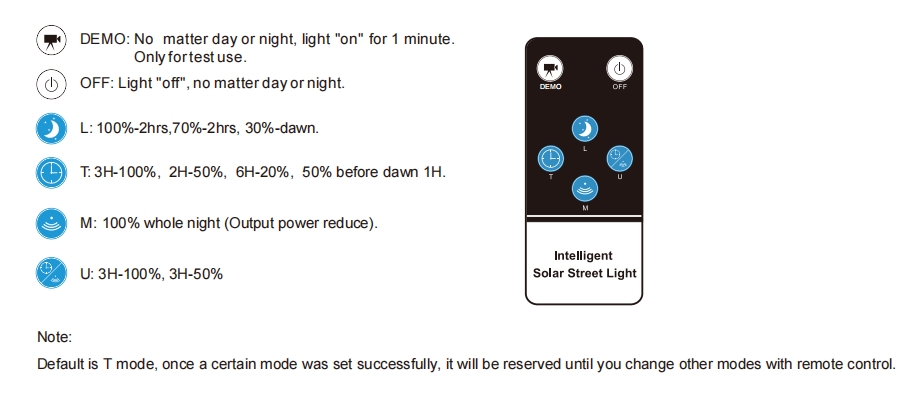

Remote Controller Working Modes
ABUIABACGAAgvsjIvAYo-IXBSDCQBziQAw


Light Distribution Display

Solar power street lamps with a brightness level greater than   200lm/W are designed to provide efficient and sustainable   illumination. These lamps are equipped with optimized optics   lenses that enhance light distribution and reduce energy   consumption. The high luminous efficacy of over 200lm/W   means that for every watt of power consumed, the lamp emits   more than 200 lumens of light, making them an energy-efficient   choice for street lighting.


ABUIABACGAAg6KjHvAYo0pSn3wYwpwc4-wI
Specification Data
ModelsRSK-40RSK-60RSK-80RSK-120
LED Power20W30W50W80W
Solar Panel (W)42W60W90W120W
Battery (Wh)144WH240WH384WH640WH
Luminous Flux (LM)4,000lm6,000lm10,000lm16,000lm
Beam Angle155°*55°
CCT3000-6500K
CRI>70Ra
Charging Time4-6 hours
Working Time2-4 rainy days
Working Temperature-20℃~60℃
Lifespan≥50000 hours
MaterialDie-casting Aluminum
IP RatingIP65
Case Diameter60mm76mm
Installation Height (M)4-6M6-7M7~8M8~10M
Mounting Distance20~25m20~25m25~30m25~30m
Reference Installation
